Double beam gantry crane application

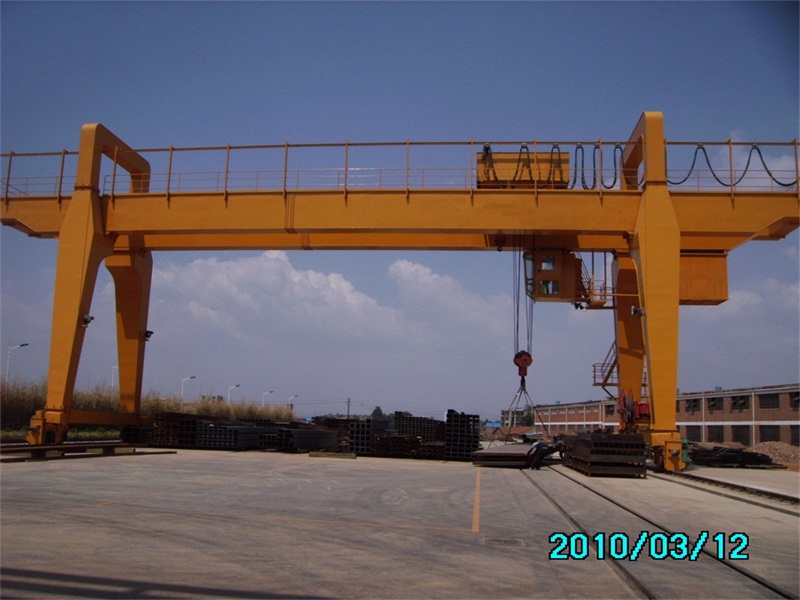

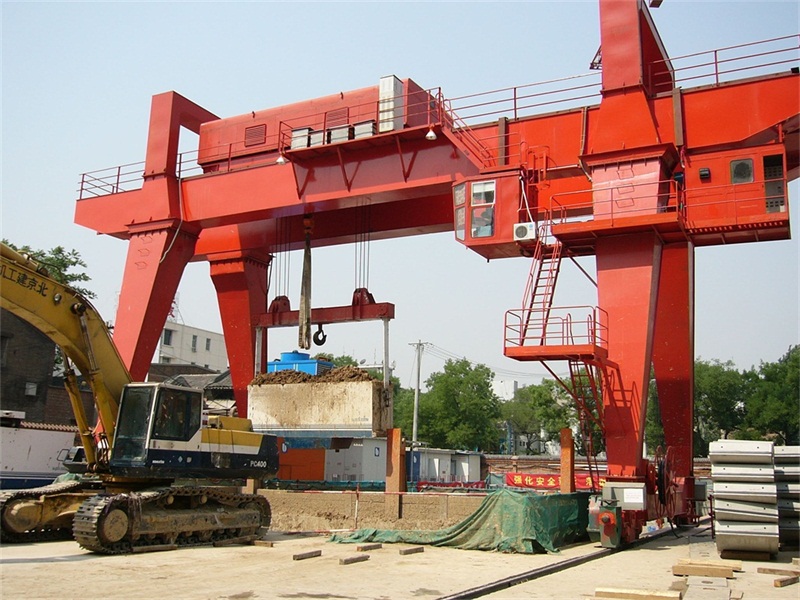

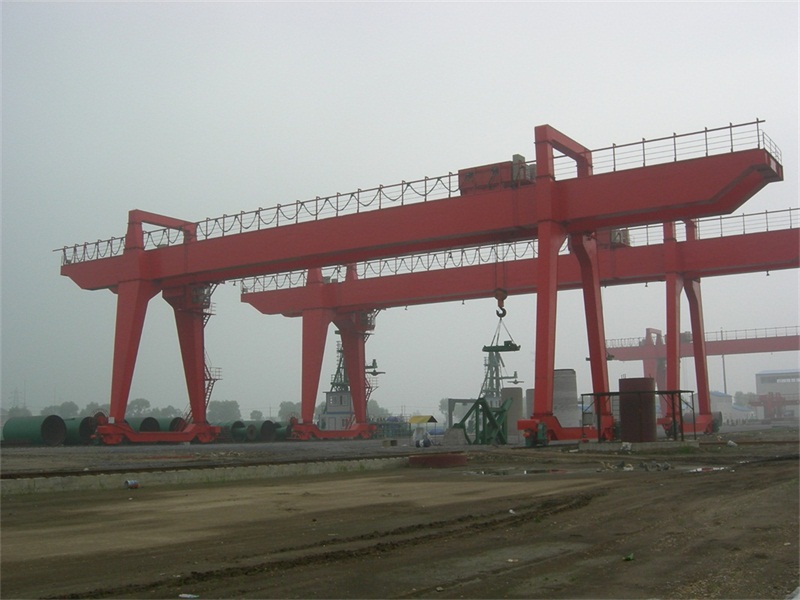

Double girder gantry crane is composed of main beam, support legs, electric hoist with trolley, motor, reducer, wheels, electric parts (electric cable, drum, electric control, electric alarm, etc). The gantry cranes are usually used outdoor for lifting, loading, unloading, transportation, stacking, such as outside warehouse, bridge and construction building, railway, construction materials manufacture, stock dock, etc.
Double girder gantry crane basic parameter
Capacity: 5 to 100T
Max lifting height: 12m
Span: 10 - 35m
Working duty: A5-A8
Lifting speed: 10/11 10/12 m/min
Hoist traveling speed: 36 m/min
Gantry crane traveling speed: 38m/min
Lifting mechanism: Electric hoist with trolley
Power source: 3ph, 380V, 50Hz or other as users requirement
Control model: cabin room, remote control and both
Working temperature: -25 to 40 degree
Double girder gantry crane Feature
1. The Main beam and support legs frame adopt box-type welding steel plate, strong and stable
2. Gantry crane traveling mechanism adopts separate drive, easy control and maintain
3. Reducer and motor adopt famouns brand, such as Schneider, Siemens, Chint and other to ensure Gantry crane working performance
4. High quality wheels, cable, drum, bearing, gear, coupling
5. Two layers primer, mid-paint and finish coat, protect gantry surface, color as your required
6. Cabin room, remote control, easy and safe operate
7. A serie of sagety protection device
a. Overload protection
b. Taveling distance and lifting height limit switch
c. Electric voltage and current overload protction
d. Emergency stop system
e. Hooks with latch
f. Sound and lifting alarm
g. Rain cover
Double girder Crane service
1. We have professional techncial team to supply drawing as users requirement
2. We offer production schedule
3. Welcome to our fatory visting
4. We provide oversea installation and traning service
5. Warranty: one year after user received the gantry crane
Double girder crane reference drawing
