Gantry Crane Safety Protection System

a. Overload protection: in the event of overload, the hoist unit switches off and only the lowering motion is possible

b. Long and cross travel limit: limit switches or wireless anti-collision device at the preliminary and final travel point

c. Anti-falling protection: the three-in-One electric motor of trolley and crane prevents from accidental falling

d. Emergency stop switch: All movements can be switched off if some dangerous condition

e. Polyurethane buffer: High quality long time, the polyurethane buffers were fixed at the end of trolley travelling and crane travelling to prevent over traveling

f. Safety hook latch: avoid the lifted material out off from the hook

g. Audible and visual alarm device: inform the person there are something wrong with crane machine, to repair or stay away from travelling crane.

h. Rain Cover: gantry crane usually works outdoor, rain cover can keep the electric cabinet and driving mechanism from rain erosion

i. Protective earth conductor is fitted as standard

j. Voltage lower protection: can protect the power supply when overload, phase-failure, unbalanced, underload, ground / leakage, blocking, external failure and other conditions.

k. Current overload protection system

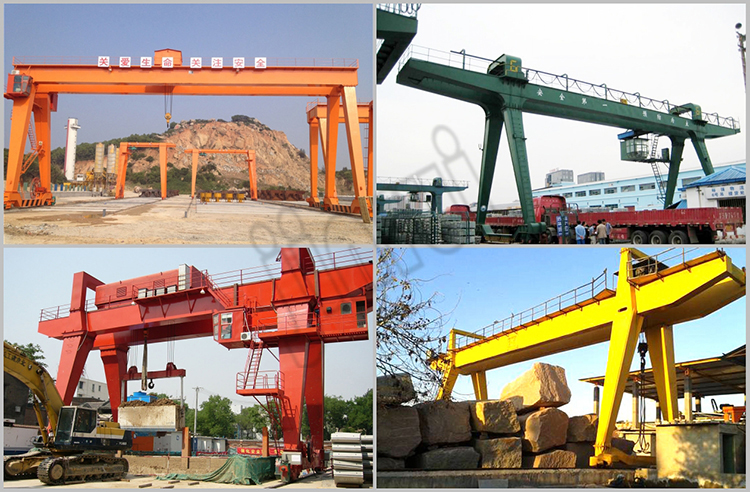

Double Girder Gantry Crane

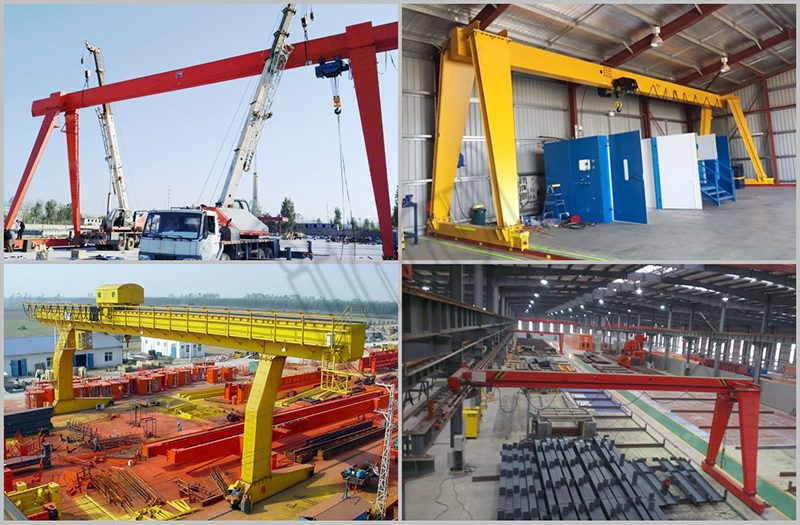

MH Single Beam Gantry Crane
