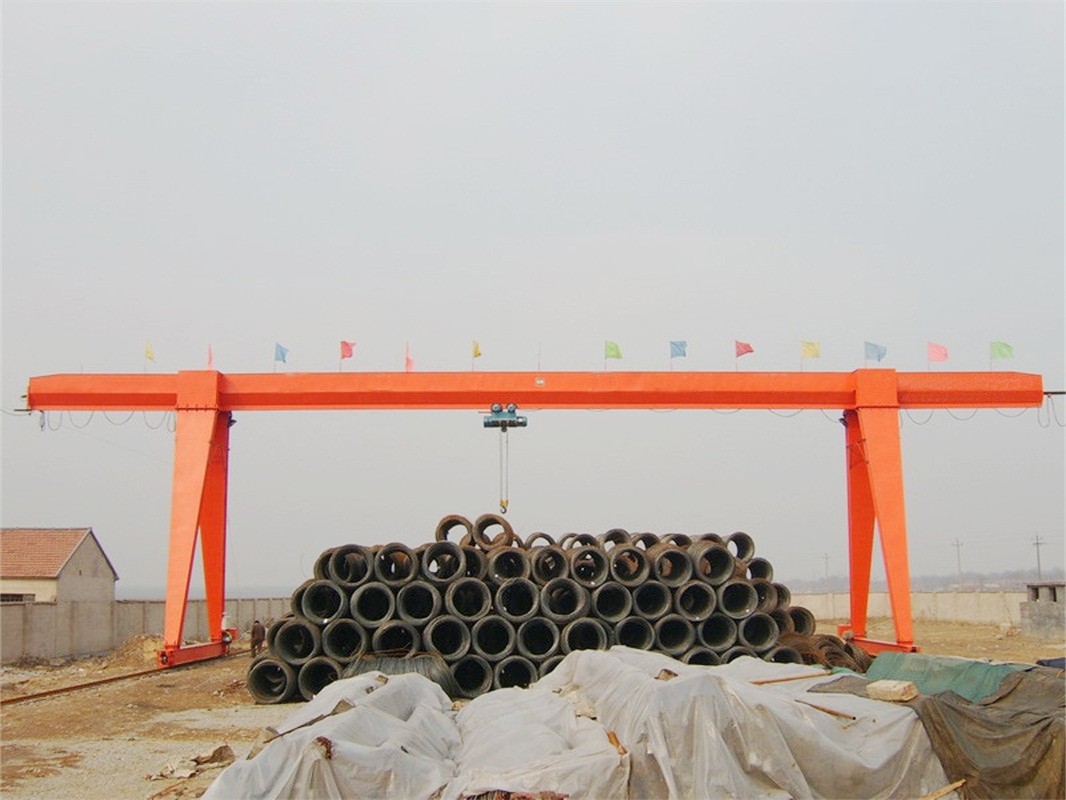

MH single girder gantry crane is one kind of medium and light duty gantry crane, the working duty is A3 - A5, is widely used to transport, assemble, check and repair as well as load and unload at workshop, warehouses, factory, mines, goods yard, freight yeard, outside area, and more
Loading capacity: 3 ~ 32T
Lifting height: 3 ~ 30M
Span: 6 ~ 35M
Working calss: A3 ~ A4
Power supply: 220 ~ 440V,50/60Hz,3Phase
Working temperature: -20-40 ℃
| Loading capacity | 3 ~ 32t |
| Lifting height | 3 ~ 30 m or customized |
| Lifting speed |
Single speed: 3 ~ 8 m/min; or customized Variable frequency speed: 1 ~ 10 m/min; or customized |
| Span | 7~31.5 m |
| Lifting mechanism | wire rope electric hoist |
| Working class | A3 ~ A5 |
| Working temperature | -20 ~ 40 ℃ |
| Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
| Control voltage | DC-12 / 24V |
| Motor protection class | IP54 IP55 IP65 |
| Control way | Ground handle control,wireless remote control,cabnient control |
| Safety device | Buffer, current overload protection, overload device, power failure protection |
| Application area | Factory,workshop,warehouse,power station,logstic,etc. |
